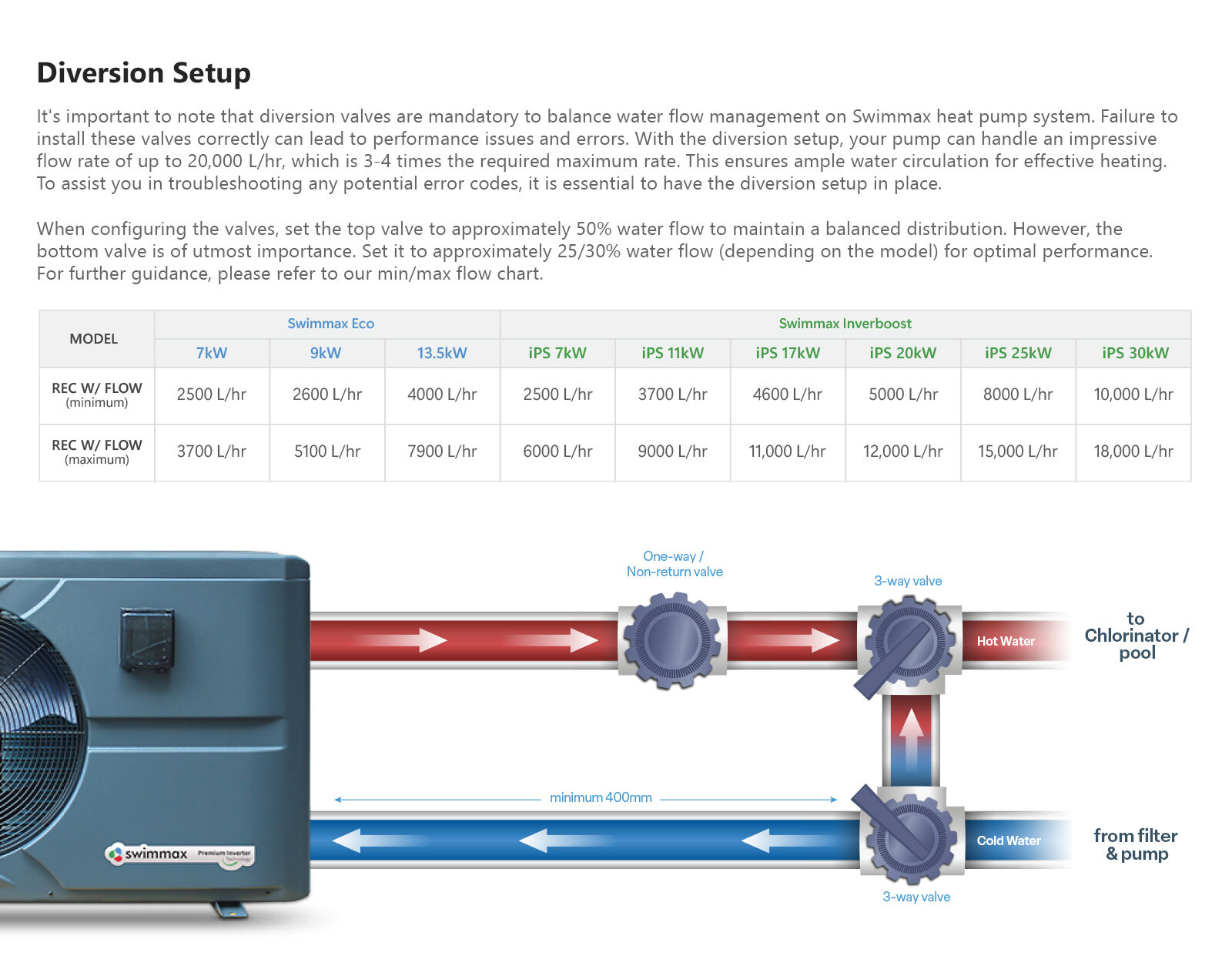

Read more about Diversion Installation Setup.
|

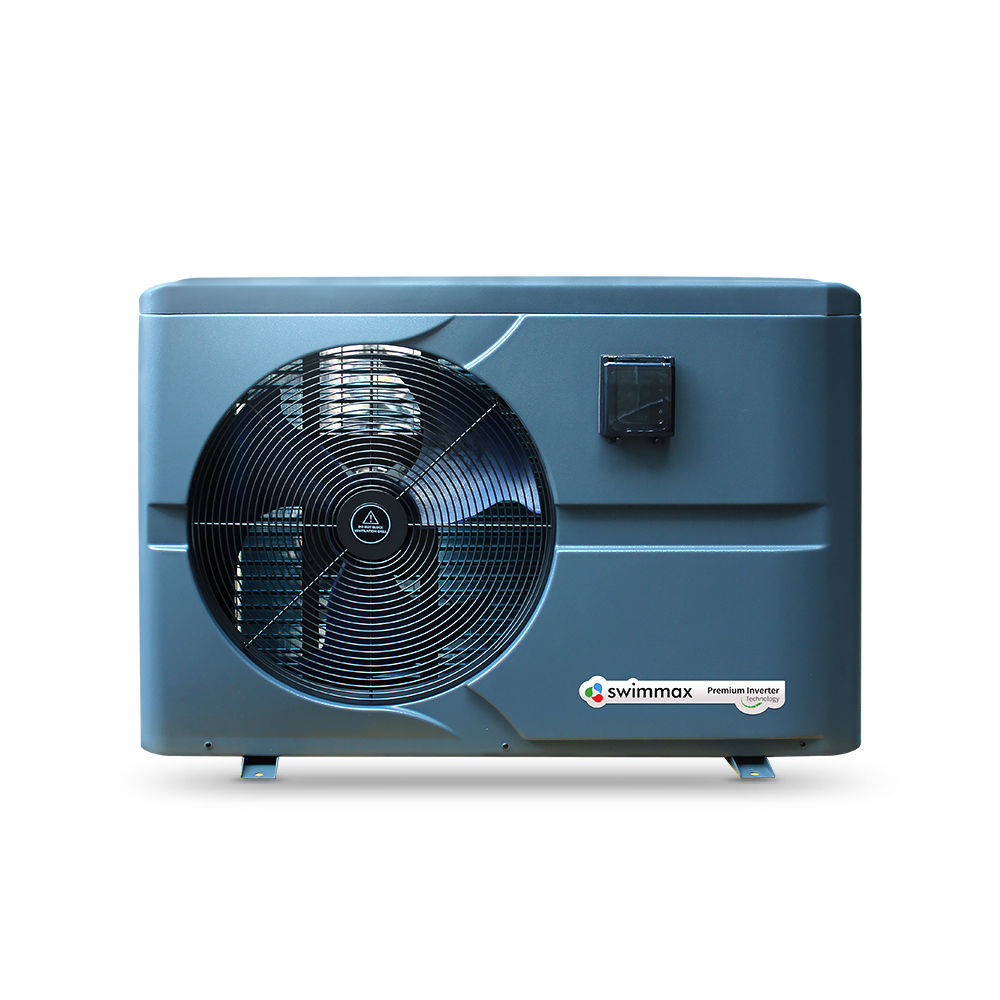

Model
|

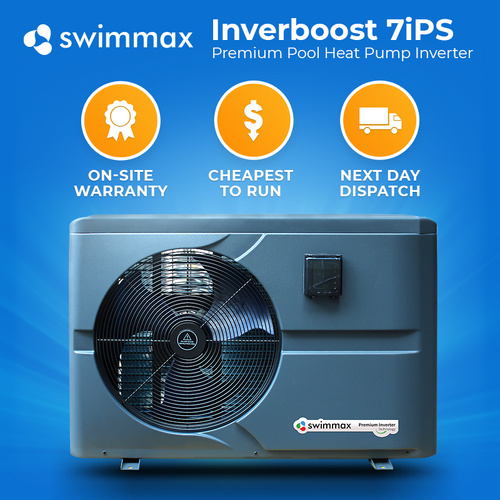

Swimmax 7iPS
|
|---|---|
|
Performance at Air 28°C. Water 28°C. Humidity 80%
|
|
|
Input Power/ Heating Capacity
|
7-2.2 kW
|
|
Input Current/ Power consummation
|
1.25-0.14 kW
|
|
COP
|
16-5.6
|
|
Performance at Air 24°C. Water 26°C. Humidity 70%
|
|
|
Input Power/ Heating Capacity
|
6.9-2.2 kW
|
|
Input Current/ Power consummation
|
1.25-0.14 kW
|
|
COP
|
15.7-5.4
|
|
Performance at Air 15°C. Water 26°C. Humidity 70%
|
|
|
Input Power/ Heating Capacity
|
4.7-2.5 kW
|
|
Input Current/ Power consummation
|
1.02-0.35 kW
|
|
COP
|
7.1-4.6
|
|
General Info
|
|
|

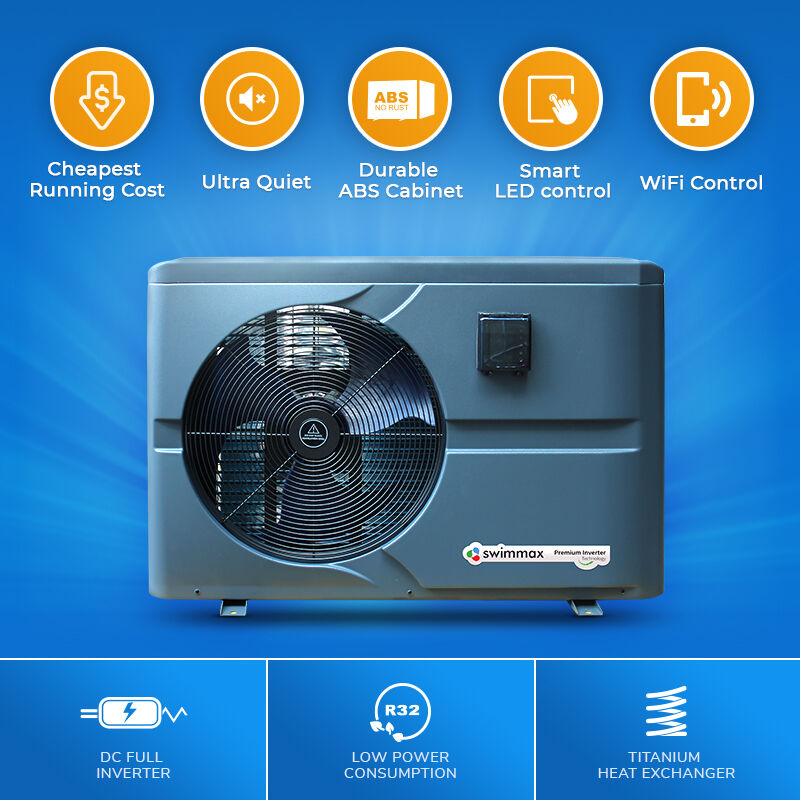

Compressor Type
|
Inverter compressor (GMCC Inverter)
|
|
Voltage / Power Supply
|
220~240V / 50Hz or 60Hz /1PH
|
|
Rate Current
|
5.5A
|
|
Minimum Fuse
|
10AMP - 3 pin plug attached
|
|
Max Pool Volume
|
20,000 L
|
|
Water Flow (m3/h)
|
2.5
|
|
Water Pressure
|
12 Kpa
|
|

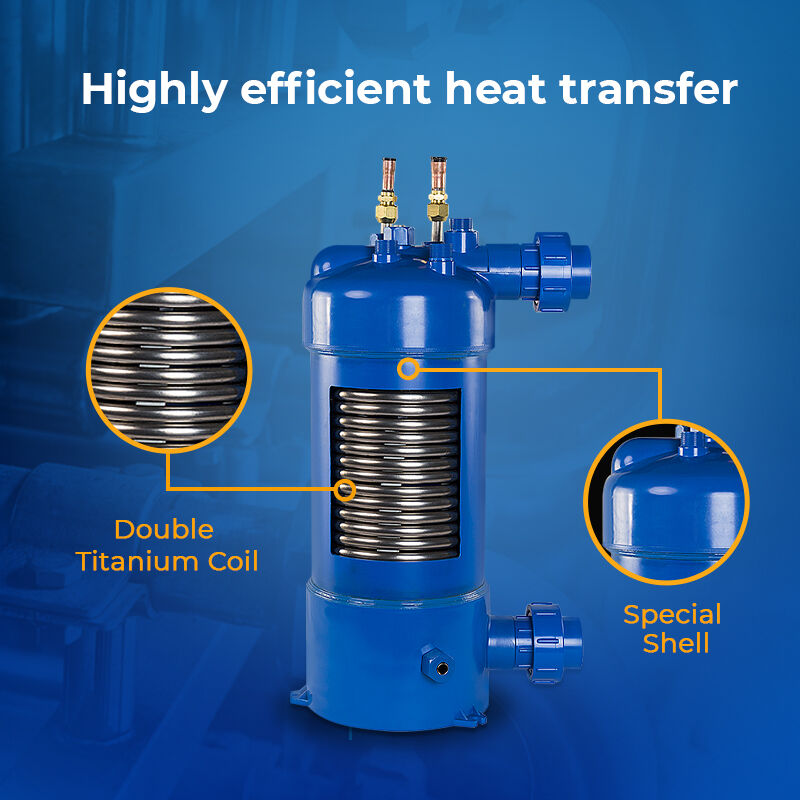

Heat Exchanger
|
Twist-titanium tube in PVC
|
|

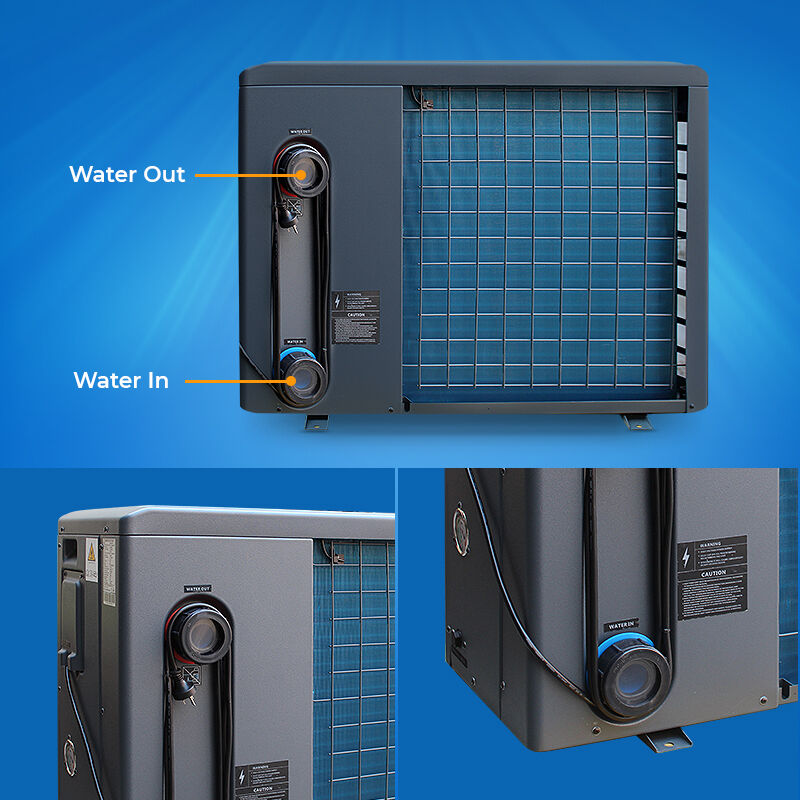

Water Connection
|
40mm/1.5"HP
|
|
Fan Qty
|
1
|
|
Fan Speed
|
500-850 RPM
|
|
Power Input of fan motor
|
6-35 W
|
|
Noise at 10m
|
≤41 dB(A)
|
|
Noise at 1m
|
40-51 dB(A)
|
|
Refrigerant
|
Eco-friendly R32
|
|

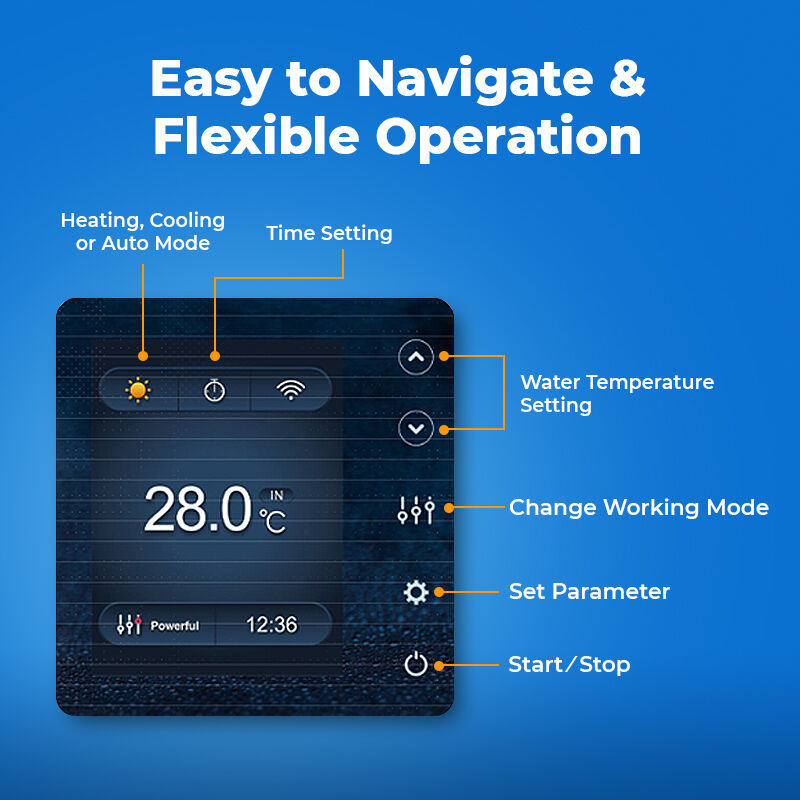

Heating mode and Auto mode setting range
|
6-41℃
|
|
Cooling mode ℃ setting range
|
6-35 ℃
|
|
Dimension/Weight
|
|
|
Net weight
|
56 kg
|
|
Gross weight
|
68 kg
|
|

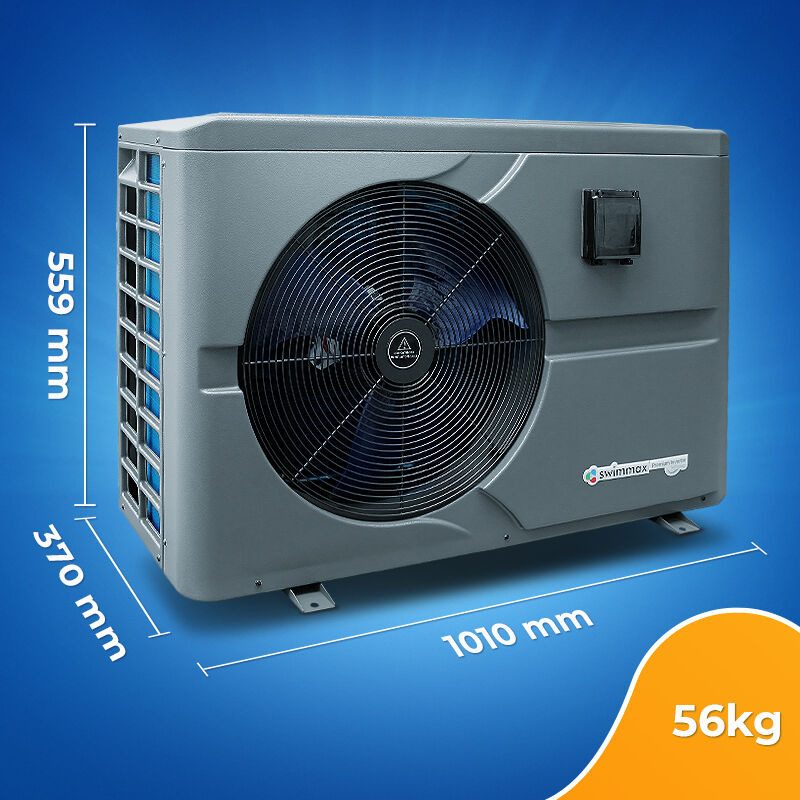

Net dimension (mm)
|
1010 x 370 x 559
|
|
Packing dimension (mm)
|
1080 x 420 x 732
|
2-Year Onsite and 5-Year Parts Manufacturers Warranty – Our new extended warranty ONLY applies for items purchased after October 2019 and is specifically noted on your Invoice. It is available up to 90 days after purchase.
The warranty period will commence from the date of purchase from Premier House, and NOT the date of installation or first use.
Whether to repair, replace, or refund a faulty item is at Premier HouseÂ’s sole discretion.
