Buy Swimmax Inverter 20kW Pool Heat Pump

Additional Services
Options

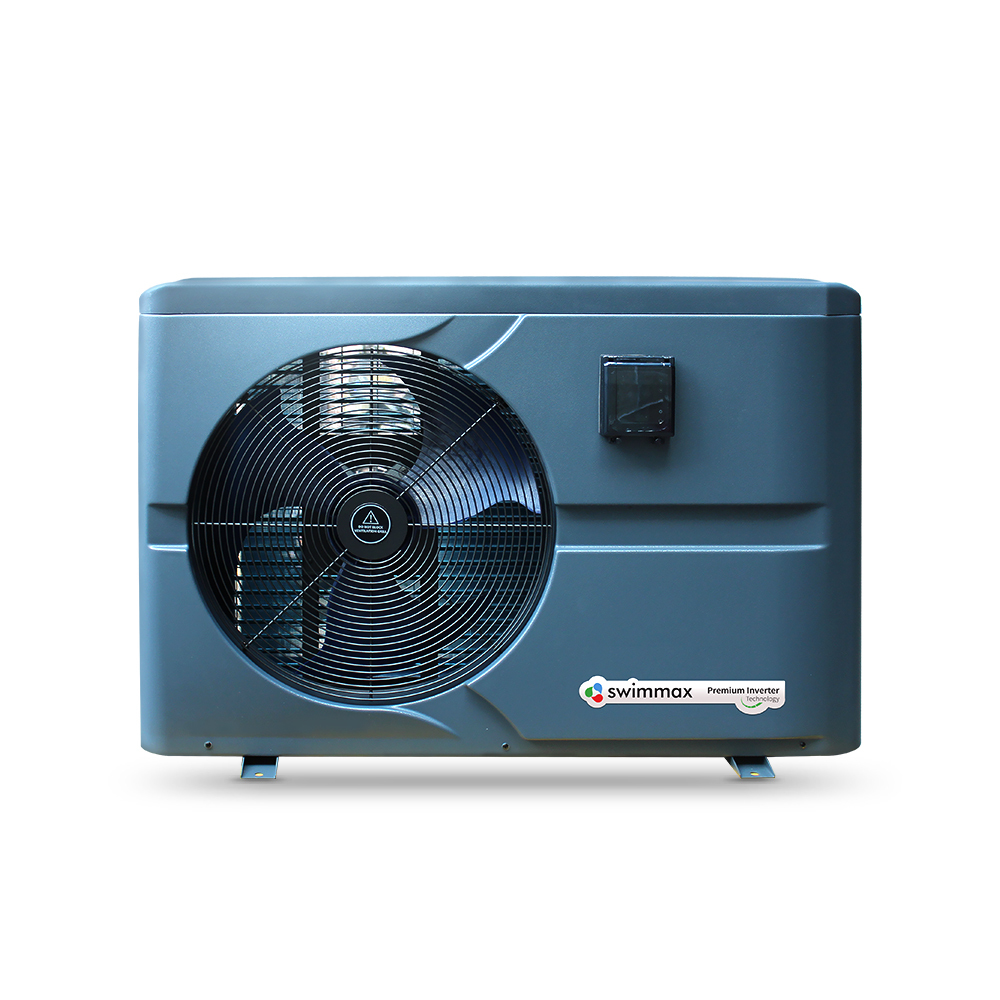

Swimmax Inverboost Heat Pumps by Premiere House have everything you’re looking for – or should be looking for – in a swimming pool and spa heat pump that pays for itself. Our powerful Inverboost technology gives competitors a run for their money – thanks to its robust, innovative, and reliable functionality.

Ideal for residential and public swimming pools and spas, our heat pumps showcase an ABS No-Rust Exterior Case that is tough and sleek. This premium inverter unit is recommended for pools and spas with up to 90,000 liters capacity. It also returns at least 20 kW in heat output for only 3.1 kW of electricity input. Swimmax Inverboost Heat Pumps can run silently and economically 24/7 in the cold, quietly operating at only 42 decibels.

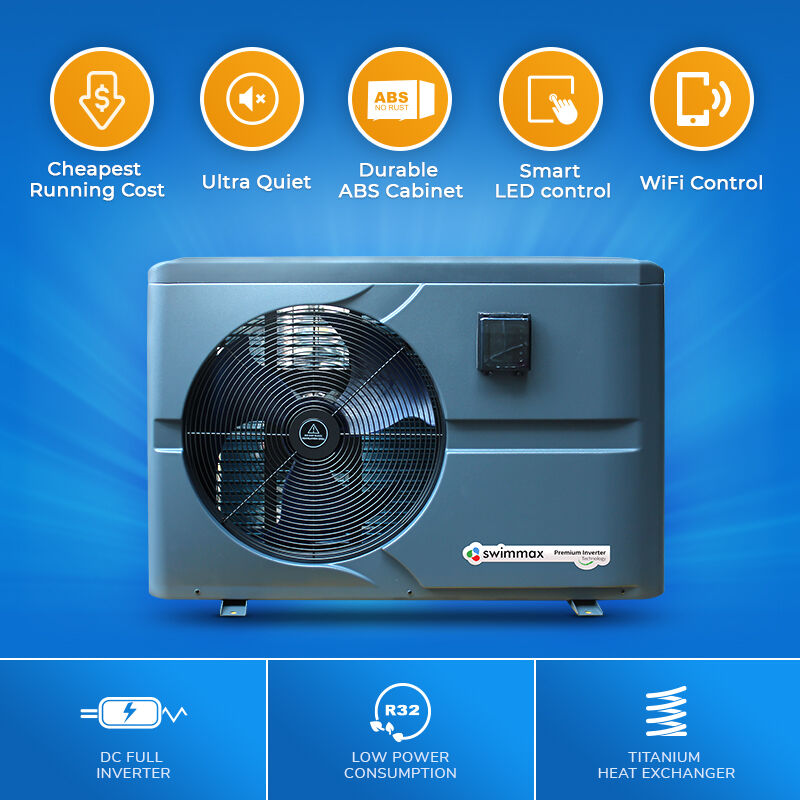

Key Features

Inverboost Technology
Up to 15-30% less power consumption
ABS No-Rust Exterior Case
DC Full Inverter

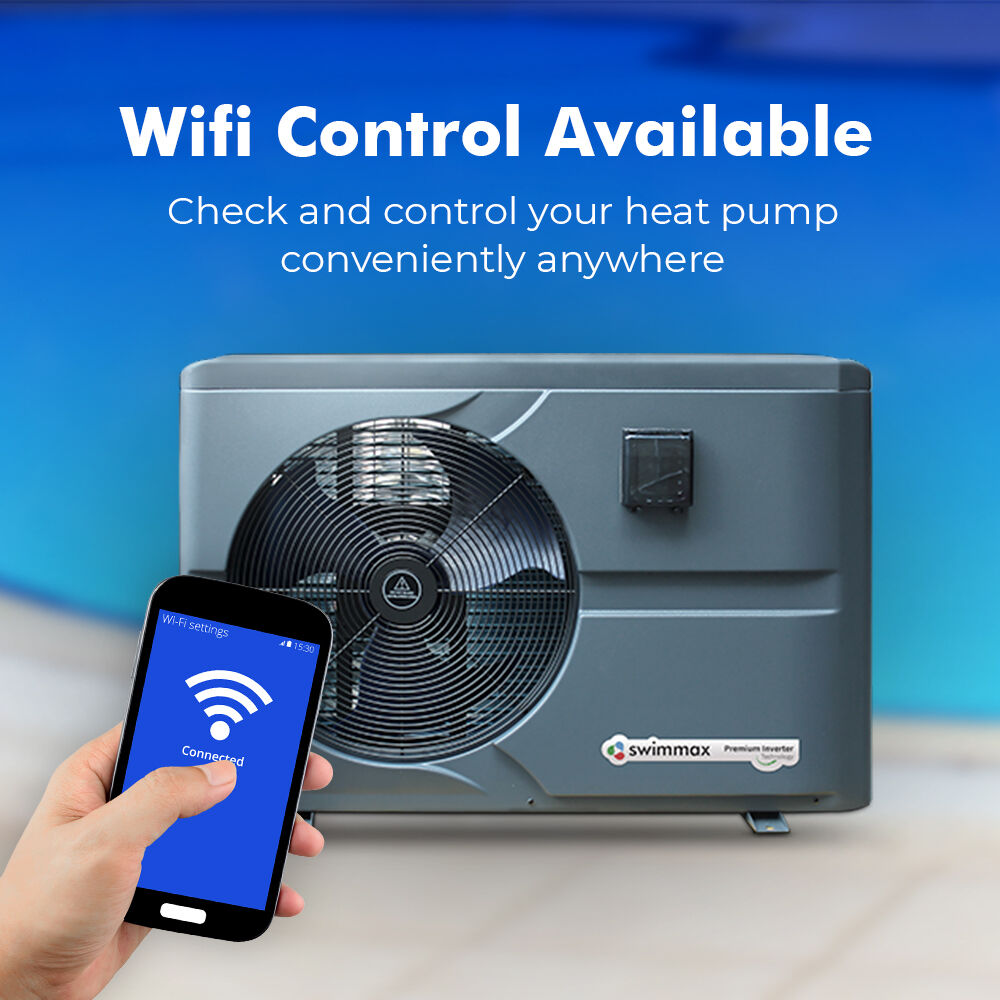

Wi-Fi Control

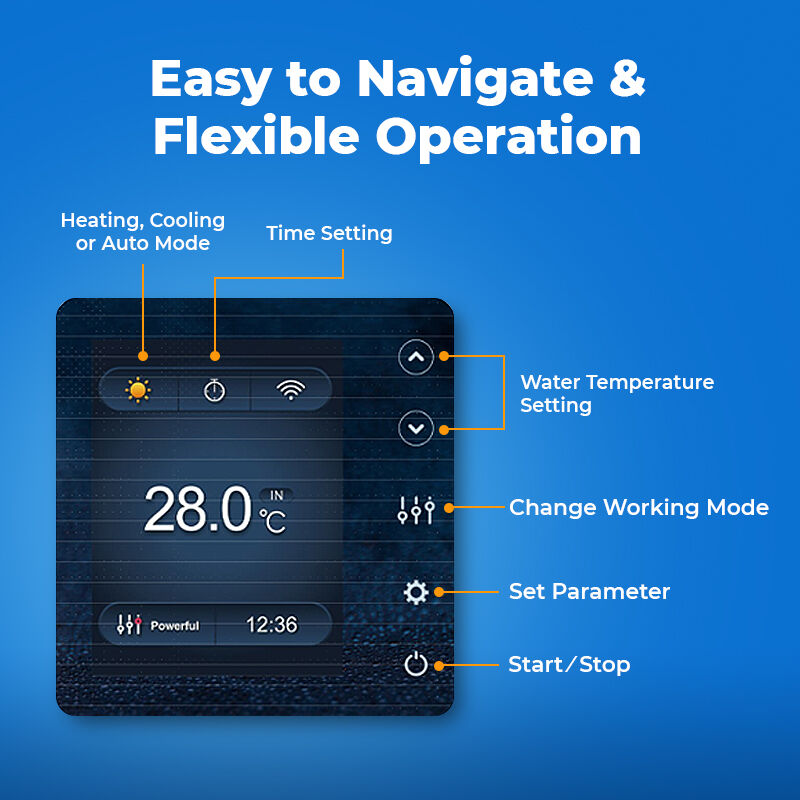

LCD Screen Control
Lower GWP

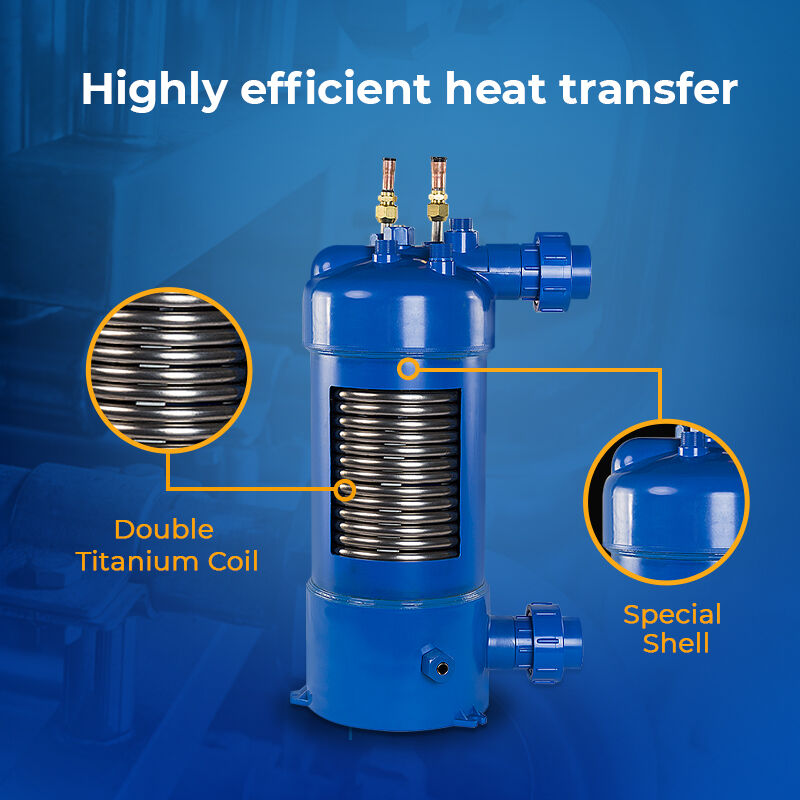

Titanium Heat Exchanger
Automatic Heating and Cooling
Quiet Operation

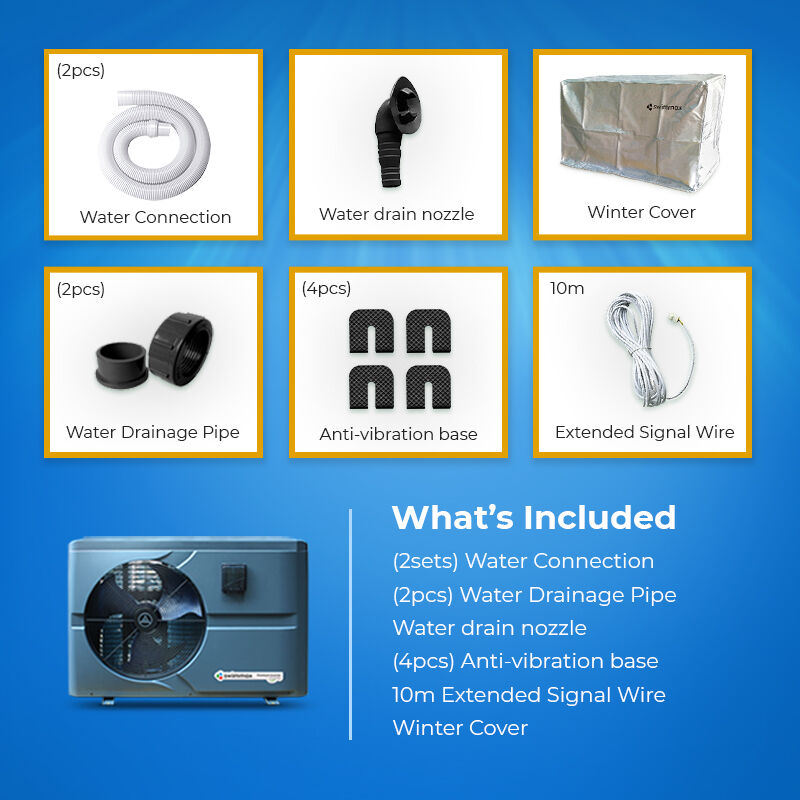

Product Inclusions

20 iPS Inverboost Heat Pump
(2x) Barrel unions
10m wire cable - controller
(2x) Water drainage pipes
(2x) Draining plugs
(4x) Anti-vibration feet
Winter cover

Heat Pump Installation

For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete Heat Pump Installation Guide and buy a set of diversion kits: 40mm or 50mm.

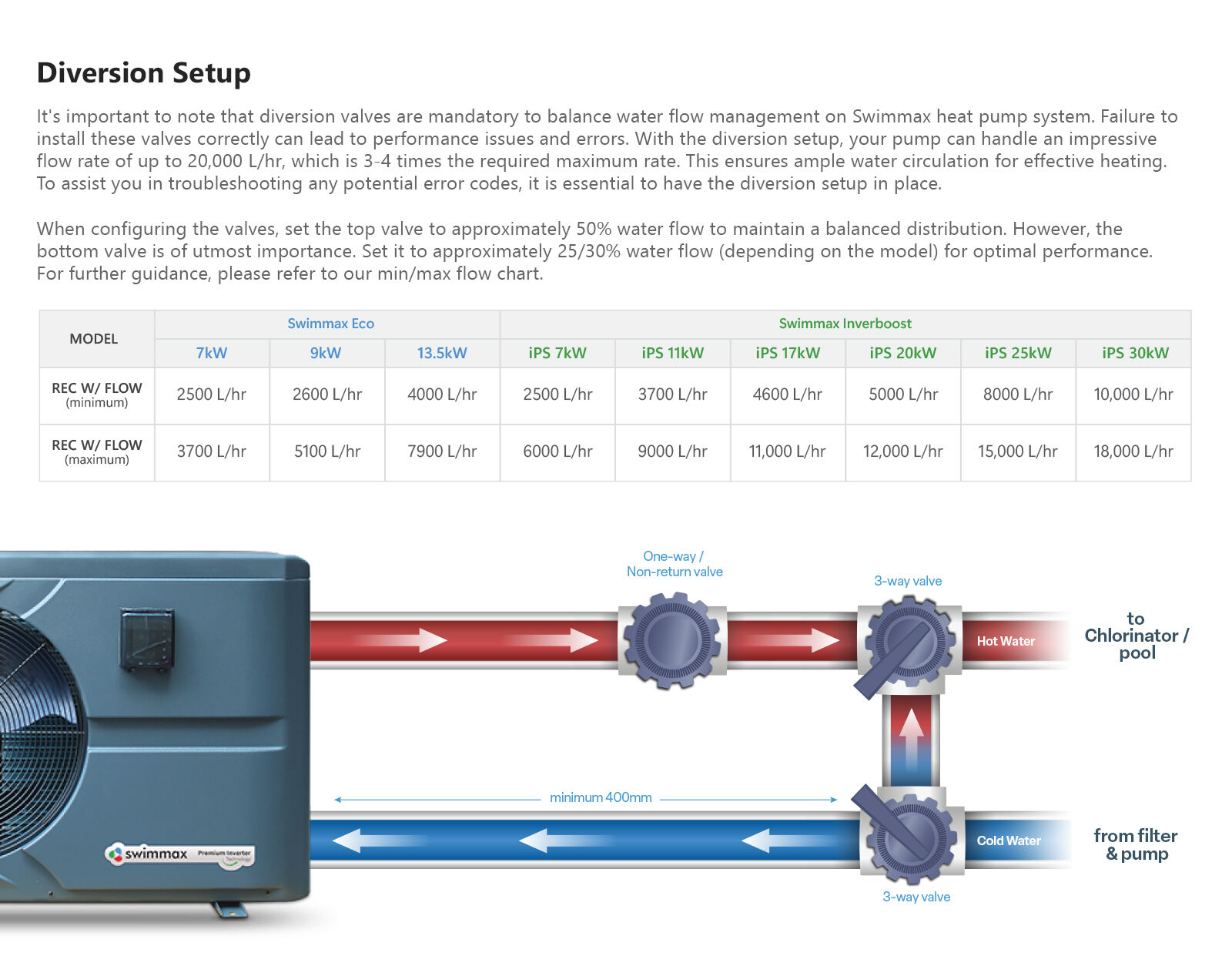

Diversion Setup

Diversion valves are mandatory to balance water flow
Failure to install valves correctly will lead to errors
Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
We are unable to help you troubleshoot error codes without a diversion setup
Set top valve to approximately 50% water flow
Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
Please refer to min/max flow chart for guidance

Read more about Diversion Installation Setup.

Model	Swimmax 20iPS
Performance at Air 28°C. Water 28°C. Humidity 80%
Input Power/ Heating Capacity	19-4.7 kW
Input Current/ Power consummation	3.1-0.29 kW
COP	16-6
Performance at Air 24°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	18.8-4.6 kW
Input Current/ Power consummation	3.1-0.29 kW
COP	15.7-5.8
Performance at Air 15°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	14-3.9 kW
Input Current/ Power consummation	2.75-0.54 kW
COP	7.2-4.6
General Info
Compressor Type	Inverter compressor (GMCC Inverter)
Voltage / Power Supply	220~240V / 50Hz or 60Hz /1PH
Rate Current	14 A
Minimum Fuse	20AMP – Hard Wired
Max Pool Volume	90,000 L
Water Flow (m3/h)	5
Water Pressure	18 Kpa
Heat Exchanger	Twist-titanium tube in PVC

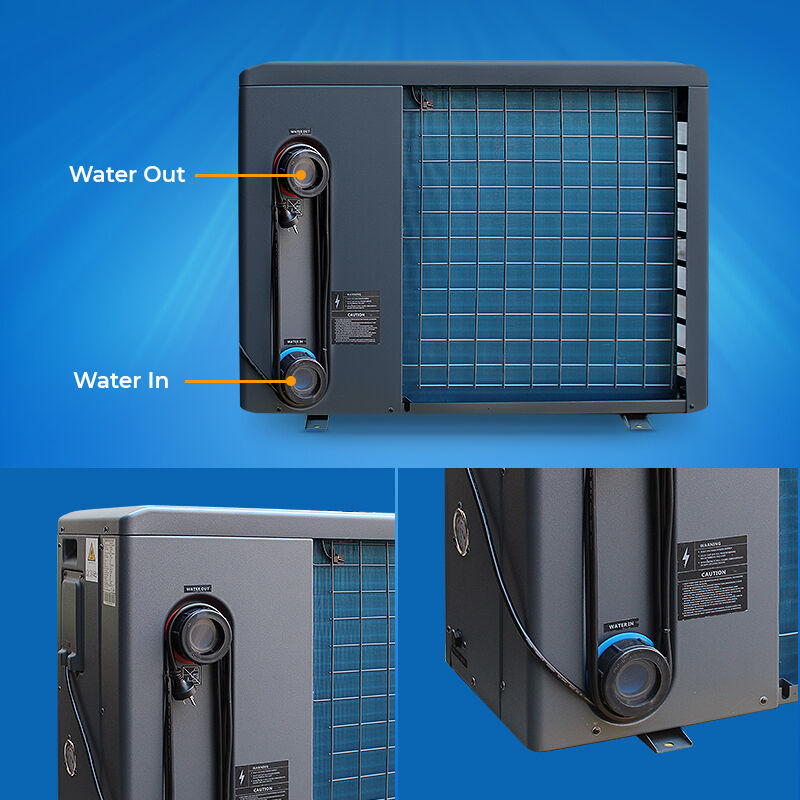

Water Connection	40mm/1.5"HP
Fan Qty	1
Fan Speed	450-650 RPM
Power Input of fan motor
Noise at 10m	≤45 dB(A)
Noise at 1m
Refrigerant	Eco-friendly R32
Heating mode and Auto mode setting range	6-41℃
Cooling mode ℃ setting range	6-35 ℃
Dimension/Weight
Net weight	117 kg
Gross weight	135 kg

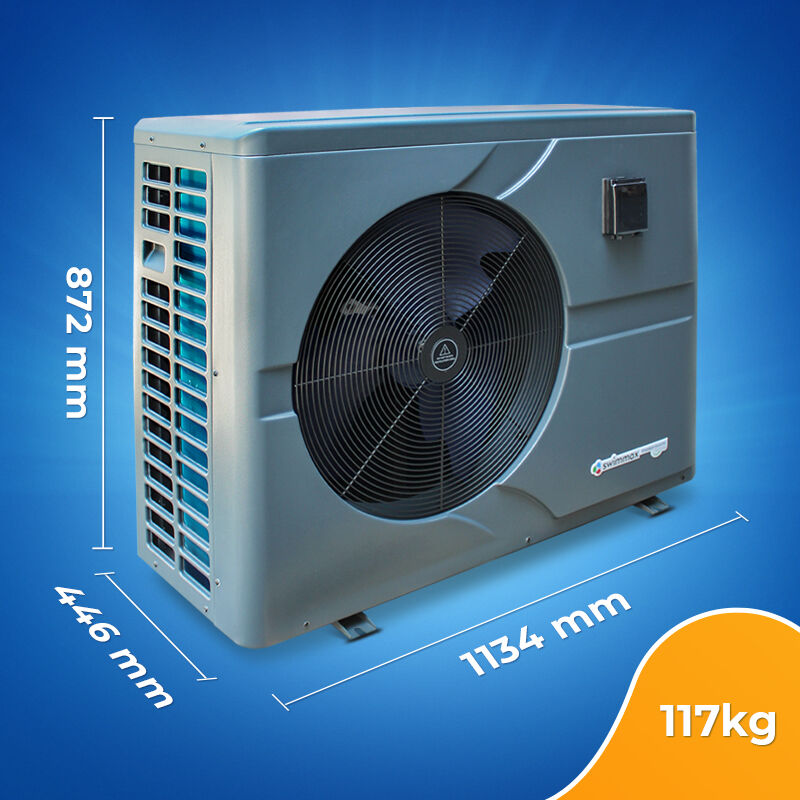

Net dimension (mm)	1134 x 446 x 872
Packing dimension (mm)	1186 x 495 x 1011

Your item will be shipped to your registered address. Please make sure your delivery information is up to date before checking out, and that you supply an attended address. Please also provide your mobile phone number and the contact number of the delivery address; this will assist with the dispatch and delivery of your item.

Standard Shipping
FREE standard shipping Australia wide on most regular product orders.

Same / Next Day dispatch
Delivery on Metro (1-3 Business Days)
Regional Australia (4-5 Business Days)

Bulky & Oversized Shipping
For Heat Pump & Bar Fridge. Flat Rate shipping cost is calculated at checkout.

Same / Next Day dispatch
3-12 Business Days Delivery
If you have a business address or forklift on site, please let us know so we can quote the best price.

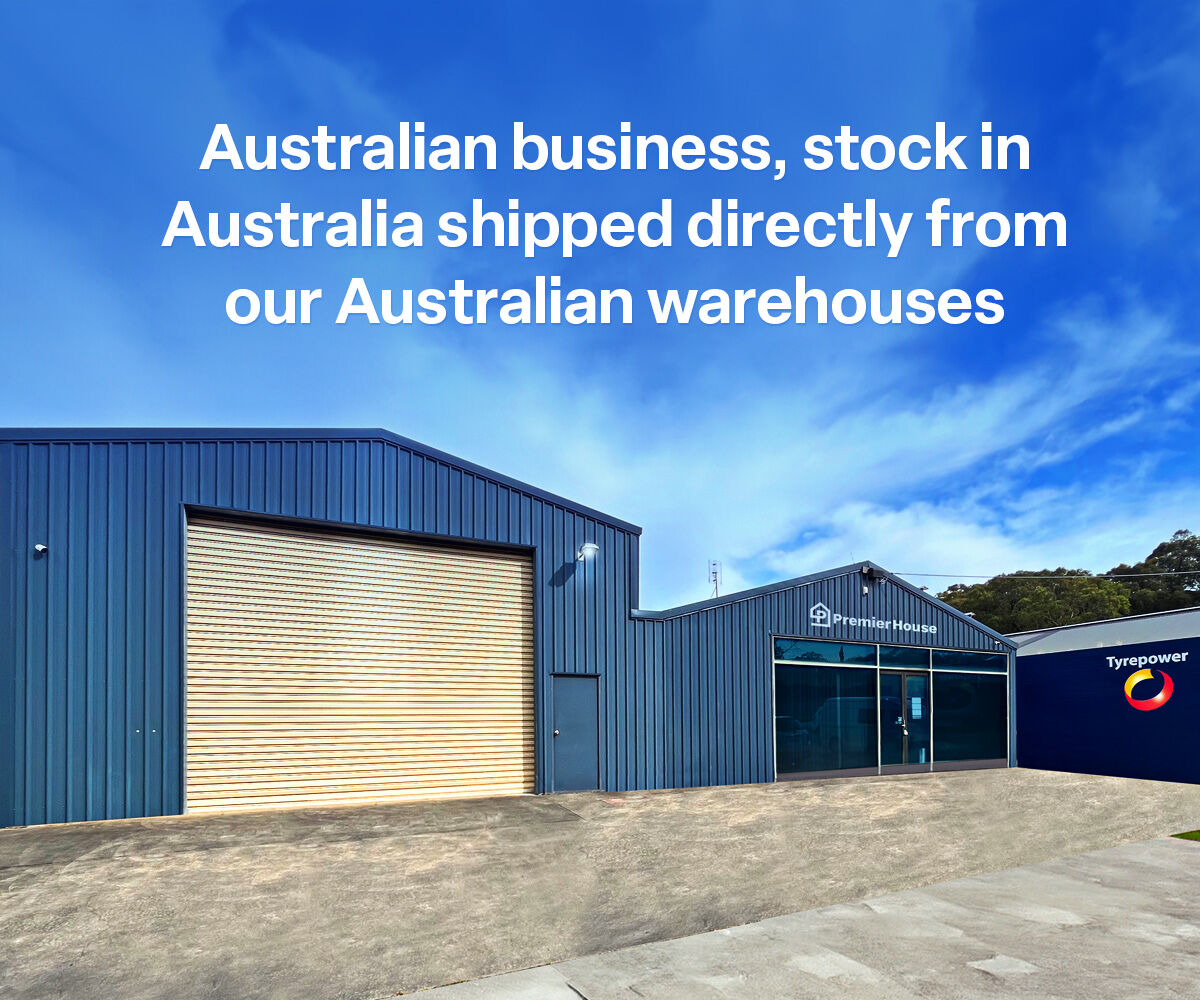

Free Local Pick-Up / Warehouse Collection

Premier House offers a third-party warehouse collection for heat pumps and fridges only.
Not all items are available at all locations and are subject to stock confirmation at the warehouse.
Payment must be made prior to pick-up. Our third-party warehouse does not accept payments.
Item collections will require a suitable ute or trailer. Please note items cannot be laid down or loaded into an unsuitable vehicle by the warehouse.
Full warehouse information will be sent after payment has been confirmed.
Third-party warehouse is open Monday-Friday, 9 am – 4 pm (except holidays).

Warehouse Locations

Chillmax Bar Fridge (Moorabbin VIC, Wacol QLD, & Hazelmere WA)
Swimmax Heat Pump (Moorabbin VIC)

Read the complete Shipping & Collection Guidelines here

All Swimmax products are backed by a 1-year onsite and 3-year parts manufacturer warranty. The warranty exceeds the consumer warranties and guarantees under Australian Consumer Law. Warranties are for the original unit owner and authorized resellers in the location where the unit was installed. Premier House warrants all new equipment to be free from defects, including factory-used materials and workmanship, and of acceptable quality and durability in every possible way.

Extended Warranty for $249

2-Year Onsite and 5-Year Parts Manufacturers Warranty Our new extended warranty ONLY applies for items purchased after October 2019 and is specifically noted on your Invoice. It is available up to 90 days after purchase.
The warranty period will commence from the date of purchase from Premier House, and NOT the date of installation or first use.
Whether to repair, replace, or refund a faulty item is at Premier Houses sole discretion.

Return Policy

The item must be returned within 30 days after the buyer receives it.
The buyer is responsible for return postage costs.
You must return items in their original packaging and in the same condition as when you received them. If you don't follow our item condition policy for returns, you may not receive a full refund.
Note: If you are in any way dissatisfied or have any issues with your purchase, please contact us through messages for a resolution before opening a return.

Read the Complete Warranty, Return and Repair Policy
