Buy Emaux 6-Way Top Mount Replacement Valve

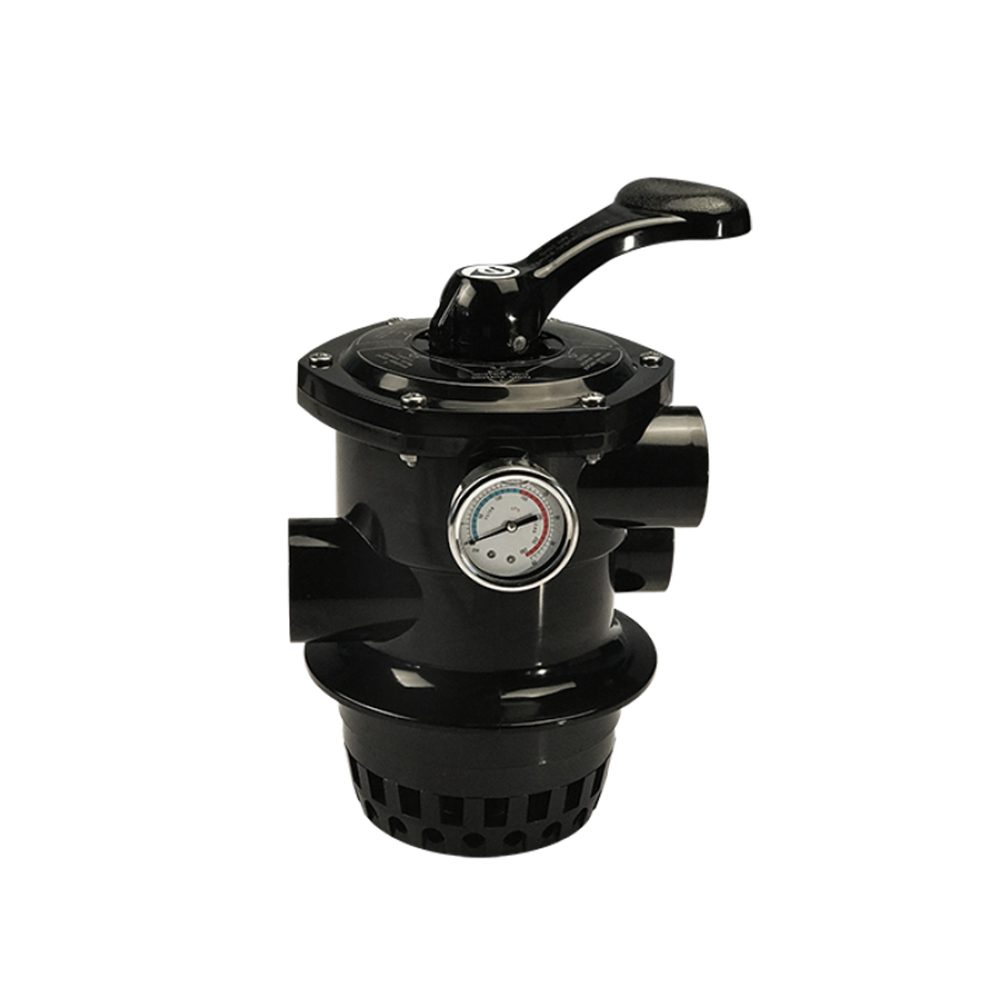

Emaux Valves are produced in versions for top-mount and side-mount filter designs and are made of ABS material with heavy-duty plastic handles. The Emaux 1.5-inch 6-Way Top-Mount Multiport Valve Replacement covers all the necessary operations needed in any swimming pools filtration through a 6-way operating model.

Key Features

6-position multiport valve for easy control and backwash

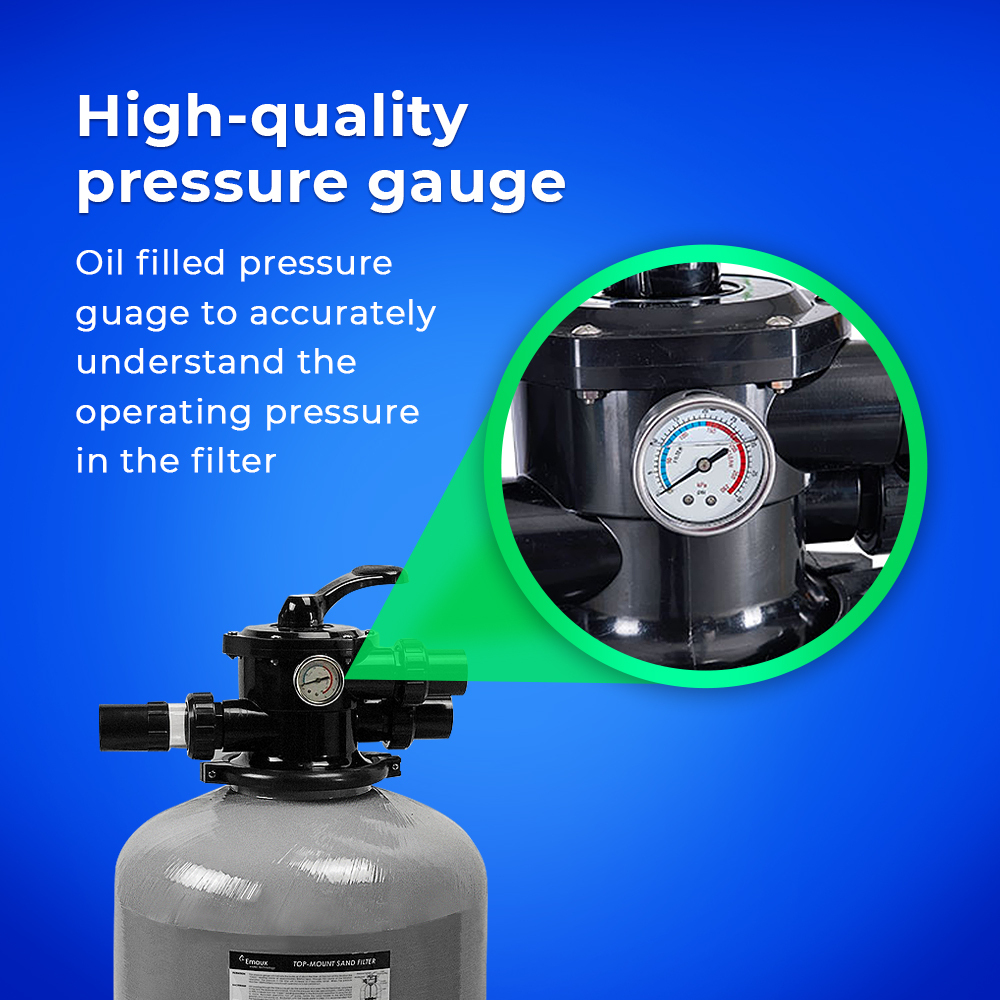

High-quality oil-filled pressure gauge
Made of sturdy ABS and marine-grade stainless steel
Heavy-duty plastic handle
Benefits
100% tested for pressure and water-tightness
Easy installation, maintenance, and servicing

Installation

Place the valve key so that the wedge opening is at the top port. The flat edge of the cover screw lug should align with the flat edge of the body screw lug.
Position the O-ring.
Secure assembly to the body with cover screws.
Tighten the screws evenly and alternately. Do not over-tighten.

Safety Precautions

Turn the pump off before changing the valve's position.
This filter operates under high pressure. When any part of the circulating system is serviced, air can enter and become pressurized. Pressurized air can cause the lid or the valve to be blown off, resulting in severe injury, death, or property damage.
To prevent damage to the pump, and for proper operation of the system, clean the pump strainer and skimmer baskets regularly.

Product Inclusions
The only inclusion is the Emaux 1.5-inch 6-Way Top Mount Multiport Valve. All pictures of the tank shown are for illustrative purposes only; the tank is NOT included in this purchase.

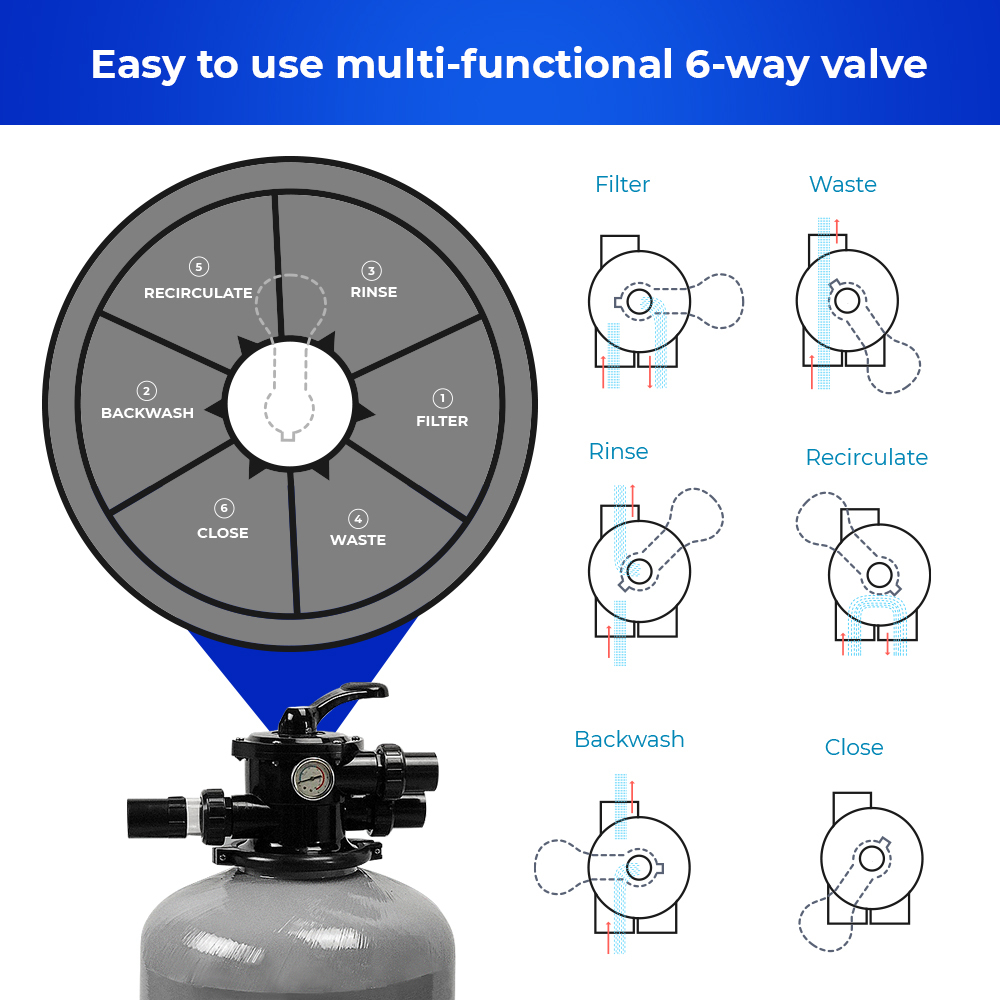

Multi Port Valve : 6 way (Filter, Backwash, Recirculate, Waste, Rinse, Close)
Max Flow Rate : 11.50 m3/H - 190 LPM
Max Water Temp : 40oC
Connection: Clamp Type
Inlet/Outlet: 40mm/1.5" High Pressure PVC
O-ring Size: 172.6 x 5mm

All our products are backed by a (1) Year Manufacturer’s Warranty. The warranty exceeds the consumer warranties and guarantees under Australian Consumer Law. Premier House warrants all new equipment to be free from defects including factory used materials and workmanship, and of acceptable quality and durability in every possible way.

Return Policy

The item must be returned within 30 days after the buyer receives it.
The buyer is responsible for return postage costs.
You must return items in their original packaging and in the same condition as when you received them. If you don't follow our item condition policy for returns, you may not receive a full refund.
Note: If you are in any way dissatisfied or have any issues with your purchase, please contact us through messages for a resolution before opening a return.

Read the Complete Warranty, Return and Repair Policy

Great product

By: Alexander on 17 December 2022
Great product, perfect fit. Vendor was fast and reliable. Excellent communication

(5)

Write a product review

Emaux 6-Way Top-Mount Multiport Valve Replacement 1.5in
